SAP FI Error: "In Company Code 1003, the Number Range 15 Is Missing for the Year 2020" – Causes and Step-by-Step Fix

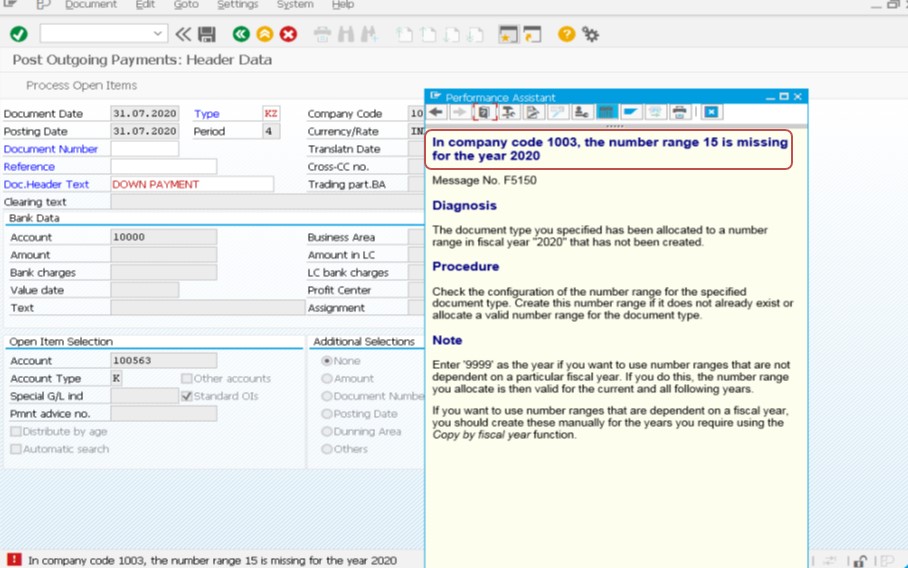

❌ The Error Message at a Glance

To solve the issue of a missing number range for the year in a company code, you need to create or maintain the number range in your SAP system. The company code, the number range number and the year in your own message may differ from this example, and the same steps apply with your own values. The year 2020 is only an example, and the error occurs in exactly the same way for any other year in which an interval is missing.

✅ What Does "Number Range 15 Is Missing for the Year 2020" Mean?

Every accounting document in SAP needs a unique number. SAP takes the number from a number range, which is a stretch of consecutive numbers reserved for a certain kind of document. When you post, the system reads the document type, finds the number range that belongs to it, and takes the next free number from the interval of that range.

The message tells you that the second step fails. The document type points to number range 15, but SAP cannot find an interval with the number 15 for company code 1003 and fiscal year 2020. Without an interval there is no number to give, so the posting is rejected. SAP does this on purpose, because a document without a number could not be found, audited or reconciled.

It is important to see that nothing is wrong with the posting itself. The accounts, amounts, dates and users can all be correct. The missing piece is a configuration entry. That is why the fix is made in Customizing, in the number range maintenance, and not in the document.

📝 How FI Document Numbers Work

FI document numbers follow a clear structure. Knowing it makes the message easy to read and the fix easy to plan.

A document in SAP FI is identified by three values together: the company code, the document number and the fiscal year. This is why two company codes can use the same numbers without conflict, and why the same number can appear again in a new fiscal year. It is also why the number range must be maintained for each company code and year separately.

The same number range number can be used by several document types. For example, vendor invoices and credit memos may share a range, while customer invoices use another. The sharing is decided in the document type settings, and it affects how many numbers are used per range.

💡 Document Types and Number Ranges: The Link

The link between a posting and its number range is the document type. When you post a document, you or the system choose a document type, such as a vendor invoice or a journal entry. Each document type carries the number of the number range it uses. This setting is maintained in the definition of document types, usually with transaction OBA7.

Because of this link you have two possible fixes. You can create the missing interval, which is the normal solution and the one described in this guide. Or you can change the document type so that it points to a range that already exists. The second option is rarely right, because it changes how documents of that type are numbered for everyone, so use it only after talking to the finance team.

💡 Why Does This Error Appear? Common Causes

• A new fiscal year has started: intervals for the new year were not created. This is the most common cause in the first days of a year.
• A new company code: the company code was created, but its number ranges were never maintained.
• A new document type: the document type points to a number range that does not exist yet.
• A client copy or system refresh: number range intervals are client-specific and may not arrive with the copy.
• The interval is full: all numbers are used and no further number is available.
• The change was made in another system: the interval was created in development, but not in quality or production.

📋 Where You Meet This Error in Daily Work

Because many business processes create accounting documents in the background, the message can also appear in logistics transactions, such as a goods receipt. When several users report the same message, the cause is nearly always this configuration gap.

🔧 Step-by-Step: Diagnose the Problem

🔧 Solution: Create the Interval in FBN1

Follow these steps to create the missing number range interval.

1

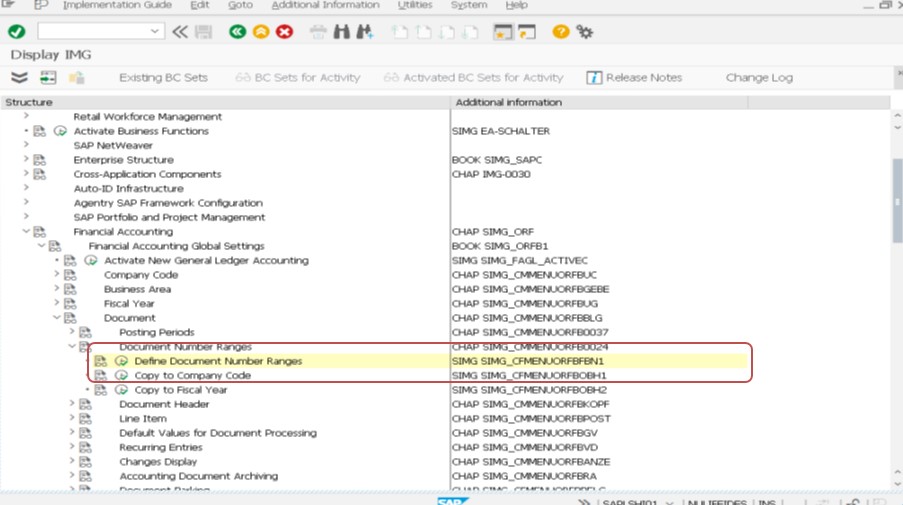

Run transaction FBN1 (Define Document Number Ranges for Company Code). In the IMG the path is SPRO → Financial Accounting (New) → Financial Accounting Global Settings (New) → Document → Document Number Ranges → Define Document Number Ranges. Press Enter.

2

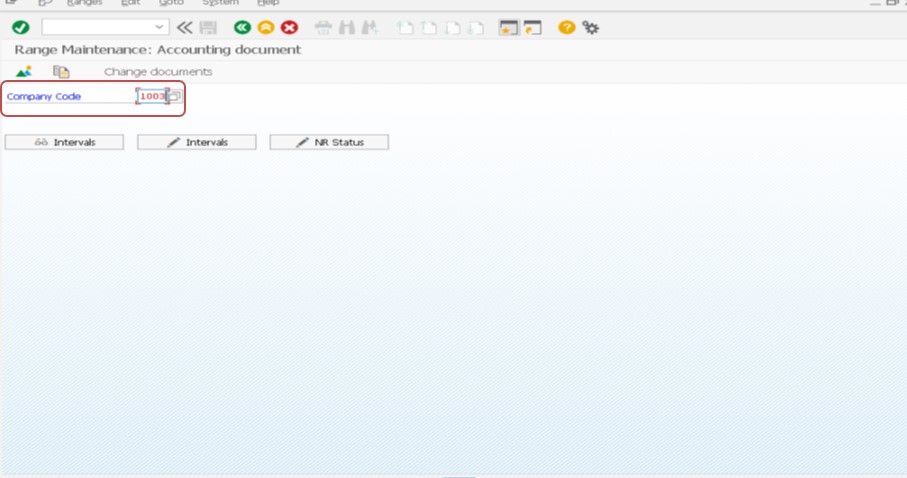

In the Company Code field, enter 1003 and press Enter.

3

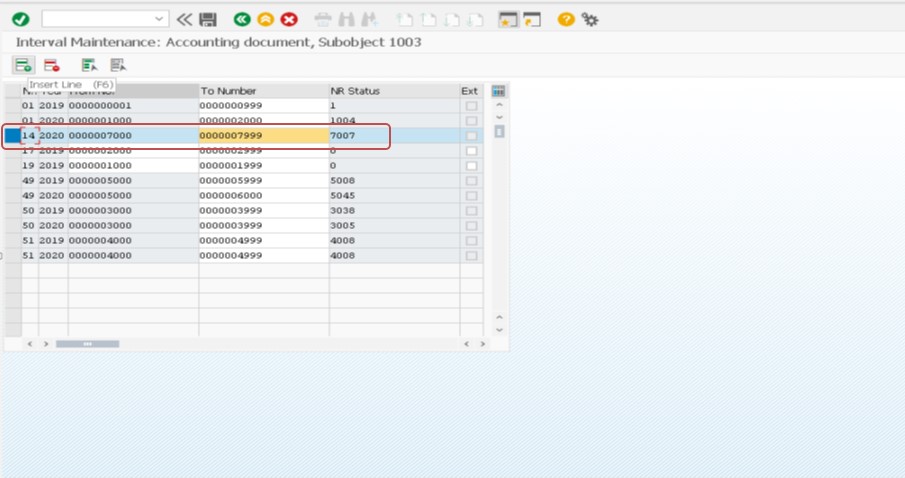

Check whether a number range already exists for the year 2020. If not, you need to create a new one. Click the Intervals button.

4

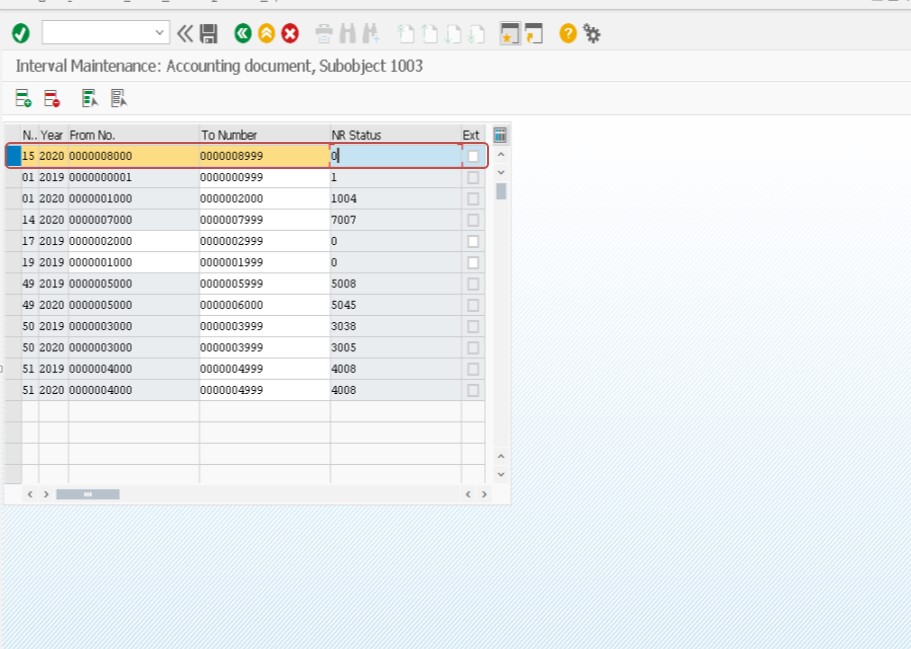

On the screen Change View "Number Range Intervals": Overview, click the Insert Interval button. Enter Number range 15, Year 2020, From number 0000008000 and To number 0000008999. Make sure that the interval does not overlap with any existing interval.

5

Save the entries. Confirm the changes and ensure that the number range interval 15 for the year 2020 has been created successfully.

📋 Fields of a Number Range Interval

Leave the Ext box empty for normal internal numbering, so that SAP assigns the next number itself. Tick it only if the document type uses external number assignment. A wrong setting leads to other messages, for example that an external number is required, so check the document type first.

✅ How to Verify That the Fix Worked

• Open FBN1 again in display mode and confirm that interval 15 for the year 2020 exists with the right limits.
• Repeat the posting that raised the error.
• Save the document. The message should no longer appear and a document number should be shown.
• Check that the number lies inside the interval, here between 8000 and 8999.
• Display the document with FB03 and confirm the company code, year and number.
• Return to FBN1 and look at the current number. It should now show the last number used.

If another message appears, the first error was only hiding the next. Typical examples are a closed posting period, a missing account or a blocked document type. Handle each message in turn.

💡 How Large Should the Interval Be?

In the example the interval runs from 0000008000 to 0000008999, which gives room for 1,000 documents. That is enough for a test or a training system, but it is small for a live company, and a full interval stops postings just as completely as a missing one.

The figures are only an illustration, but they show how to think. Estimate the number of documents per year for each range, multiply by the years you want the interval to last, and add a safety margin. FI document numbers have up to ten digits, so there is plenty of room to be generous. For a range that is used by high-volume document types, such as vendor invoices or goods movements, choose a much larger interval than for rarely used types.

Keep the intervals of different number ranges in clearly separated blocks, for example one block per hundred million, so that a user can recognize the kind of document from the number. Document the plan and keep it with your configuration notes.

📅 Year-End Checklist for Number Ranges

Since the error appears so often when a year changes, a short routine prevents it. Repeat these steps every year, ideally a few weeks before the new fiscal year starts.

• List all number ranges that are in use in each company code.
• Create intervals for the new fiscal year for every number range on the list.
• Check the usage of the current intervals, and extend any that are close to full.
• Check the number ranges of Materials Management, Sales and Controlling, because they have their own checks.
• Test a posting with each important document type in the quality system.
• Check that posting periods and the fiscal year variant are ready for the new year.
• Tell the accounting team the date and the plan, so that they know whom to contact.
• Record the new intervals in your configuration document.

Some releases offer a copy function for number ranges, which copies intervals from one year to the next or from one company code to another. Check the options in your own system. Whatever method you use, always inspect the result in FBN1 afterwards, because a copy can bring unwanted current numbers or limits with it.

🔄 Moving the Change Between Systems

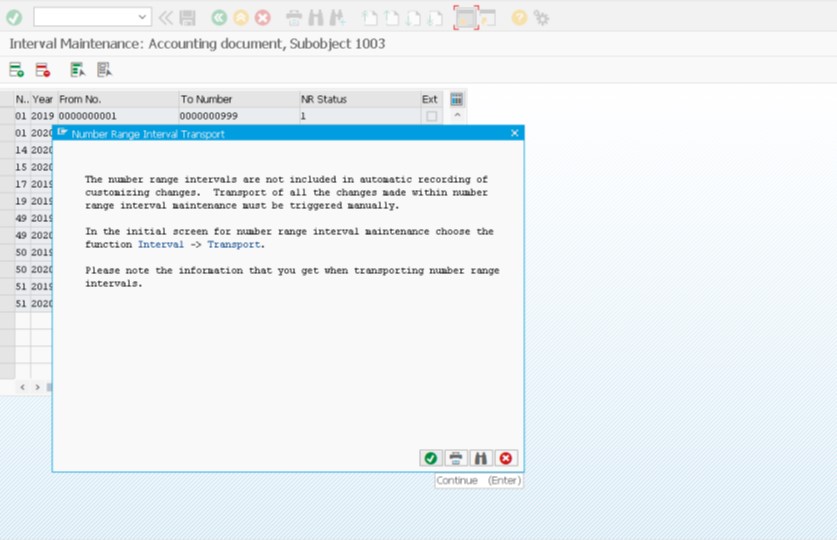

Number range intervals behave differently from most Customizing. They are client-specific, and the intervals themselves are often not carried by the usual Customizing transport. As a result, a range created in development does not automatically exist in quality or production.

Use the same interval numbers in every system wherever possible. This keeps documents comparable and avoids confusion when data is copied back for testing.

❗ Common Mistakes When Fixing This Error

• Creating an interval for the wrong company code or the wrong year.
• Using a number range number different from the one in the message.
• Creating an interval that overlaps with an existing one.
• Choosing an interval that is too small and running out within weeks.
• Ticking the Ext box without a reason.
• Changing the document type instead of creating the interval, without asking finance.
• Fixing only one system and forgetting quality and production.
• Not testing a real posting after the change.

🔧 Troubleshooting: When the Fix Does Not Work

The same message still appears after saving

Check that the number range number, the company code and the year in the interval match the message exactly. Then start a new session and repeat the posting.

A message about an overlapping interval appears

Choose numbers outside the existing intervals. Look at all intervals for the company code and the year before you decide.

A message about an external number appears

The document type may use external numbering. Either tick the Ext box for the interval, or correct the document type, after talking to finance.

It works in quality but not in production

The interval exists only in one system. Create it in the other, since intervals are not always transported.

The error appears for another company code

Each company code has its own ranges. Repeat the steps for that company code.

The interval is full

Create a new, larger interval under another number range number, and point the document type to it, or extend the existing interval if there is room after its upper limit.

✅ How to Prevent This Error in the Future

• Add number ranges to the year-end checklist, with a named person responsible.
• Create intervals for the new year several weeks before it starts.
• Monitor how much of each interval has been used.
• Use large intervals for high-volume document types.
• Add number ranges to the setup checklist for every new company code and document type.
• Add FBN1 to the post-copy checklist for client copies.
• Keep a document that lists each range, its purpose and the document types that use it.
• Train key users to report the full message with company code, number range and year.

💡 Best Practices for FI Number Range Design

Keep the design simple and documented

A small number of ranges, each with a clear purpose, is easier to maintain than many. Write down which document types share which range, and keep the document next to the configuration notes. When a new colleague takes over, this single page saves hours of research.

Plan for growth

Estimate the volume per range, add a generous margin, and leave gaps between blocks of numbers. A range that is too tight forces unplanned changes in the middle of a busy period, which is the worst time for them.

Separate high-volume and low-volume documents

Document types with many postings, such as vendor invoices and goods movements, deserve their own large ranges. Rare types, such as manual adjustments, can share a small one. This keeps the use of numbers predictable.

Monitor and review

Look at the current numbers of the important intervals once a quarter. If an interval is more than half used, plan its extension. A reminder in the calendar of the finance team costs nothing and prevents an outage.

🔒 Authorization Considerations

Number ranges are sensitive configuration. A wrong interval can create duplicate or missing numbers, and the effect lasts for years. For this reason, access to FBN1 is normally limited to consultants and a few key users. If you cannot change it, send the support team the message, the company code, the number range, the year, the transaction where it appeared and your proposed fix: "create interval 15 for year 2020 in company code 1003 in FBN1 with the agreed limits". A precise request is handled faster than a screenshot alone.

📱 This Error in SAP S/4HANA

In SAP S/4HANA, accounting documents are stored in the universal journal, but they still receive document numbers from number ranges, and the same type of message can appear if an interval is missing. In on-premise releases the familiar number range maintenance is normally available, although some object names and screens may differ slightly. In cloud editions, number ranges are often handled through guided configuration activities or are managed by the system. Confirm the exact way of working in your own release. The principle does not change: if SAP cannot find the interval that a document type needs, create it for the company code and the fiscal year.

📋 Quick Fix Checklist

• Note the company code, number range and year from the message.
• Check the document type of the posting in OBA7.
• Open FBN1 and enter the company code.
• Click Intervals and look at the existing intervals.
• Choose Insert Interval and enter the number range, year, from number and to number.
• Make sure that the interval does not overlap with others.
• Leave Ext empty for normal internal numbering.
• Save and confirm that the interval was created.
• Repeat the posting and check the document number.
• Create the interval in every system where it is missing, and record what was done.

📋 Related SAP Transactions

🎓 Interview-Style Questions and Answers

Q: What does the message mean?
The document type points to a number range for which no interval exists for the company code and fiscal year.

Q: Which transaction fixes it?
FBN1.

Q: How is a number range linked to a posting?
Through the document type, which carries the number range number.

Q: Why is it common at year change?
Ranges are maintained per fiscal year, and the intervals for the new year may not exist yet.

Q: What must you avoid when creating an interval?
Overlap with other intervals, and a range that is too small.

Q: Does an FI document number need to be unique across company codes?
No. A document is identified by company code, document number and fiscal year together.

📚 Quick Glossary

• Number range: A stretch of consecutive numbers reserved for documents.
• Interval: A single stretch with a from-number and a to-number for a given year.
• Document type: A classification of accounting documents that carries the number range key.
• Fiscal year: The accounting year for which intervals are maintained.
• Company code: The smallest organizational unit with its own balanced books.
• Internal numbering: The system assigns the next number automatically.
• External numbering: The user or an external system supplies the number.

🎯 Conclusion

The message "the number range is missing for the year" is clear once you know how document numbers work. The document type points to a number range, and SAP cannot find an interval for the company code and the year. Open FBN1, enter the company code, choose Intervals, insert an interval with the number range, the year and sensible limits, make sure that it does not overlap, save, and repeat the posting. Remember that intervals are not always transported, so create them in every system. Add number ranges to your year-end checklist, and the error will not stop your accountants again. If something still blocks you, send the details to pramod@learntosap.com and we will help you find the next step.
